Mining & Resources

Built for dust, vibration, heat and the distance between you and the nearest spare.

New Zealand and the Pacific

Manufacturing Power Solutions for Australia, New Zealand and the Pacific

Industry and Communities ‍

across Australia,

Powering‍ ‍

Overview

A mine is a moving load in a punishing environment, often thousands of kilometres from a supplier’s front door. Equipment specified for a switchroom in a capital city does not survive it. Tyree builds mining grade assemblies for the conditions and for the logistics.

What mining and quarrying need from their electrical supply

The environment is the first design input. Abrasive dust, constant vibration from mobile plant and blasting, ambient temperatures well above standard design assumptions, and in coastal or processing environments, corrosive atmospheres that attack the enclosure before they reach the equipment inside.

The load moves. Pits extend, processing plant expands, and supply that was correct at the start of the mine plan is in the wrong place three years later. Mobile and skid-mounted assemblies let the supply follow the operation rather than the operation working around the supply.

Then there is distance and downtime. A failure on a remote site costs production by the hour, and response depends entirely on whether the supplier can get people and parts to you. Tyree manufactures locally and supports what it builds with a field service team.

What we supply to mining and resources

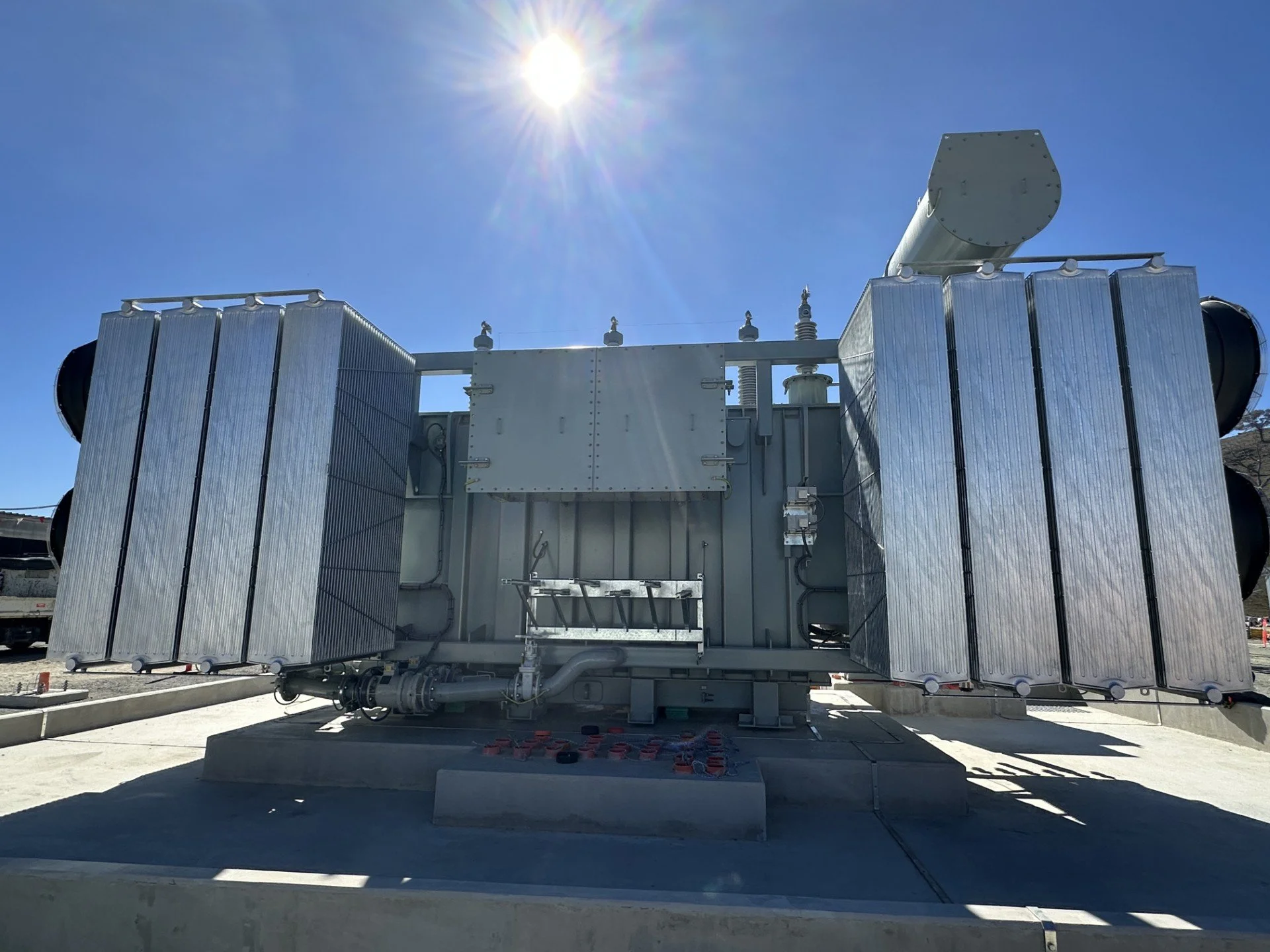

Power transformers

Zone substation and sub-transmission duty

Bespoke to fit installation requirements for diverse mining applications. Round-coil, core-type design with in-house conductor manufacturing, engineered to your network specification.

RATINGS
Up to 80 MVA

Voltage
Up to 145 kV

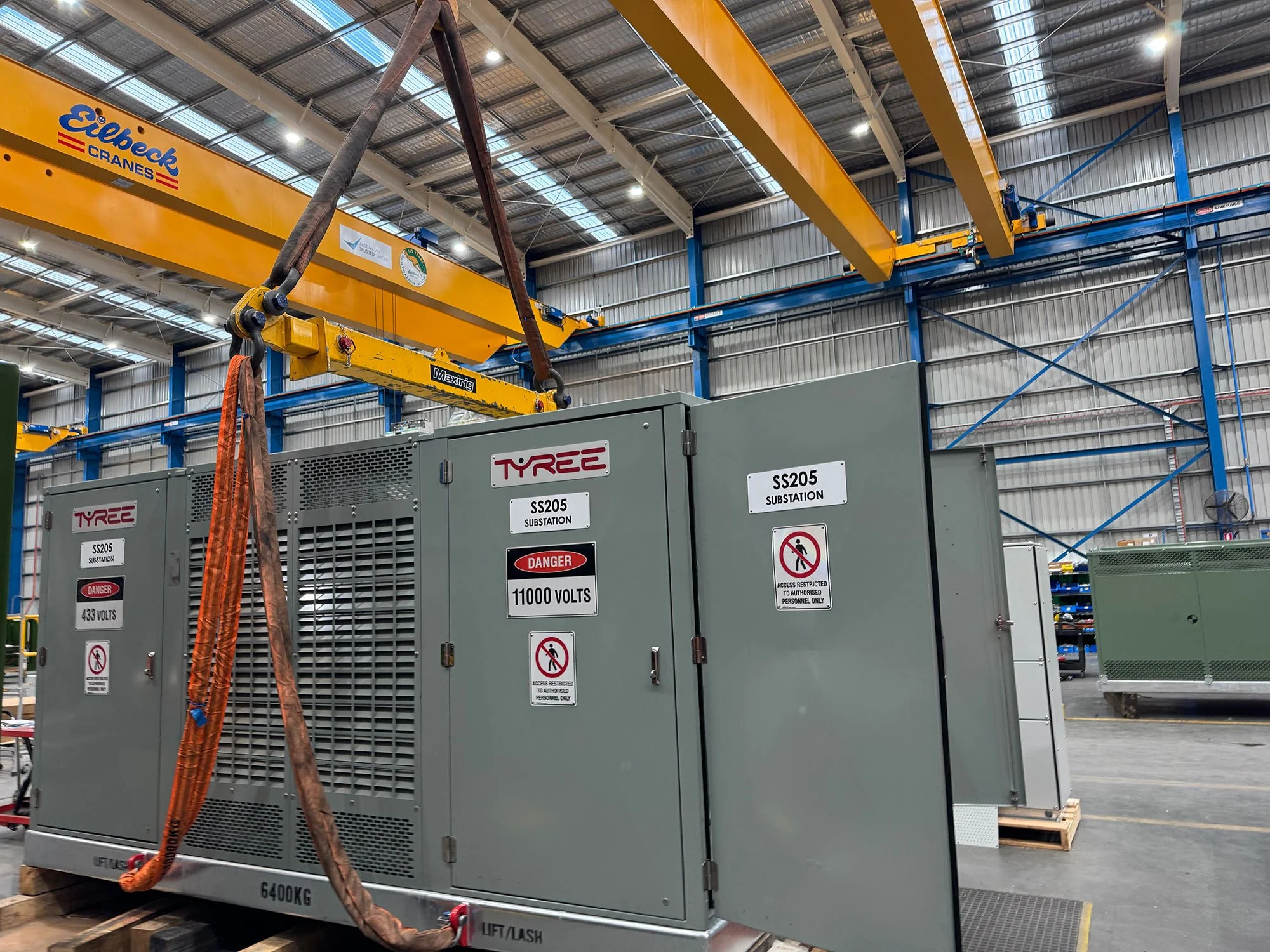

Mining Grade Substations

Rugged by specification

Corrosion resistant tank finishes with cubicles in 5000 series marine grade aluminium or 300 series stainless steel, self bunding and K rated fluid options.

Voltage
Up to 36 kV

Enclosure
Marine grade / stainless

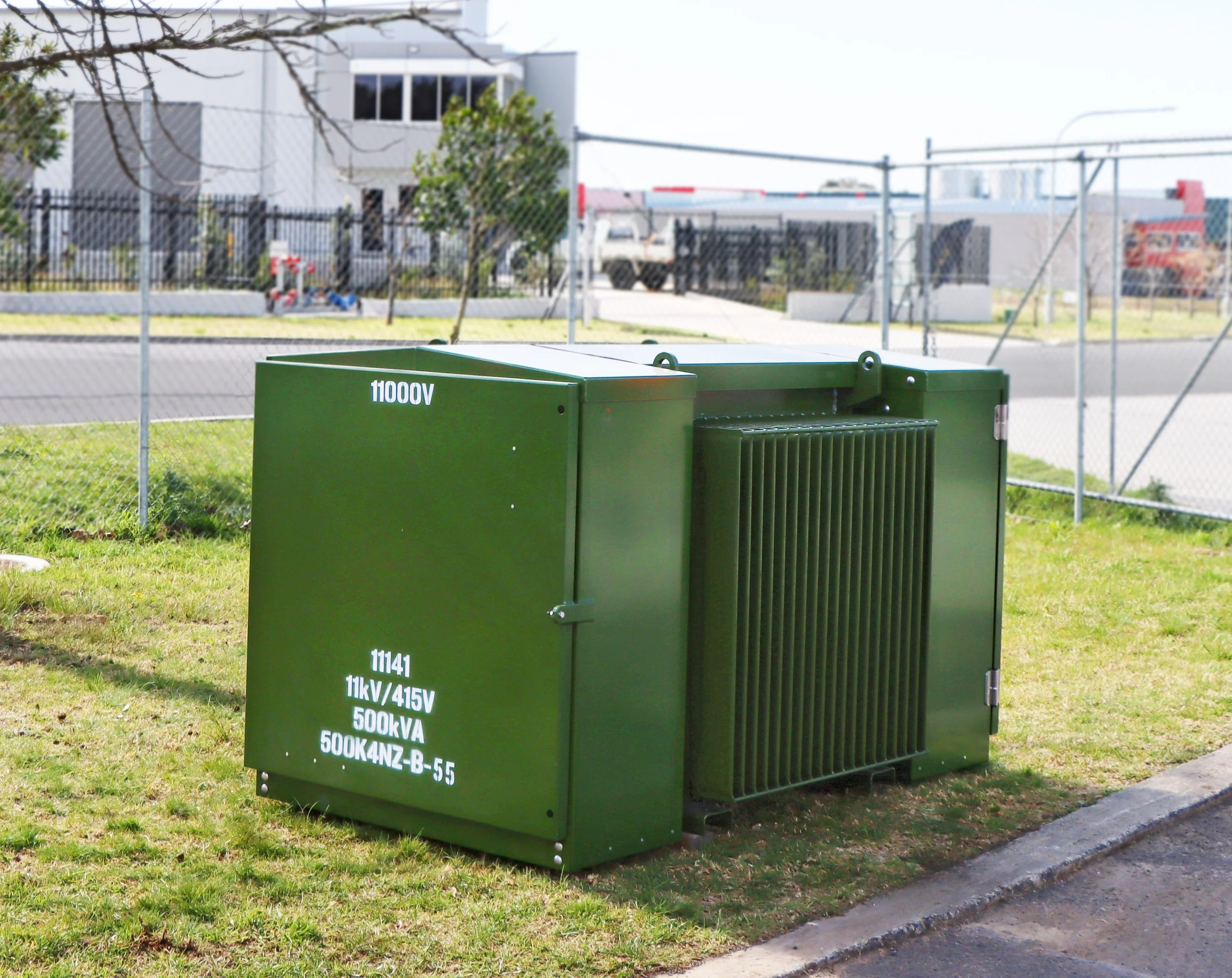

Mobile and Skid Substations

Supply that follows the operation

Relocatable packaged substations for pit extension, processing expansion and temporary supply, engineered for lifting and transport.

Ratings
500 kVA – 2500 kVA

Mounting
Skid / trailer

Why mine operators and contractors choose Tyree

MANUFACTURED HERE

Made in Australia, for Australia

Manufactured locally for these conditions, not just Australian-branded. Designed against Australian ambient, dust and corrosion realities rather than adapted from an export specification.

TESTED IN HOUSE

Our own testing laboratories

Routine, special and type testing in our own labs, ISO 9001, 14001 and 45001 certified, with full material and process traceability on every product.

BUILT FOR THE SITE

Rugged by specification, not by option

Corrosion resistant finishes, marine grade and stainless cubicles, self bunding and enhanced protection specified for mining duty from the outset.

AFTER DELIVERY

Field service, not just supply

On-site installation support, commissioning, training and in-field testing, then ongoing service, maintenance and technical support.

Other Industries

Talk to us about your site.
Send us the load schedule and the site conditions.
