Custom Designed For Your Project Needs
Substations
Mini Pads
Low-profile design, fast installation
Ratings of 100-1500kVA, three phase, 11 and 22kV, fluid filled.
Approved for New Zealand distribution network underground construction standards.
Transformer designed, Manufactured and Tested to AS/NZS60076 including registration to MEPS in our Australian and New Zealand facilities.
Featuring corrosion resistant tank finish and aluminium HV and LV cubicles suitable for installation and supply with Low Voltage Panels and metering.
Tyree Minipads are type tested and proven in New Zealand networks as an efficient and reliable preference for utility EDB’s.
Square Type Substation
Compact and Versatile for Network Solutions
Elongated Type Substations
Designed for Scale, Built for Accessibility
Ratings of 315-2500kVA, up to 36kV, fluid filled.
Square footprint padmount arrangements for utility, industrial and renewable energy applications.
Transformer designed, Manufactured and Tested to AS/NZS60076 including registration to MEPS in our Australian and New Zealand facilities.
Substation design to AS62271.202 with features available such as self bunding, enhanced protection with K rated fluids and integrated with MV and LV switchgear solutions.
Cubicles manufactured in ether 5000 series marine grade aluminium or 300 series stainless steel to ensure performance to first maintenance per Australian Standards.
Options for SCADA and ADMS integration available that utilise preferred and leading components and apply local know how to make it work.
Ratings of 315-10,000kVA, up to 36kV, fluid filled.
Elongated footprint is preferred for modern networks and enables segregation and a broad range of integration options for utility, infrastructure, industrial and renewable energy applications.
Transformer designed, Manufactured and Tested to AS/NZS60076 including registration to MEPS in our Australian and New Zealand facilities.
Substation design to AS62271.202 with features available such as self bunding, enhanced protection with K rated fluids and integrated with MV and LV switchgear solutions.
Cubicles manufactured in ether 5000 series marine grade aluminium or 300 series stainless steel to ensure performance to first maintenance per Australian Standards.
Protection and control customisation in accordance with AS3000 and power system requirements.
Options for SCADA and ADMS integration available that utilise preferred and leading components and apply local know how to make it work.
Defence Substations
Australian Department of Defence Manual of Infrastructure Electrical Engineering (MIEE) Compliant
Ratings of 100-1,500kVA, up to 24kV, fluid filled.
Elongated footprint to standard design arrangement for defence sites.
Transformer designed, Manufactured and Tested to AS/NZS60076 including registration to MEPS in our Australian facilities.
Substation design to MIEE, and AS62271.202 with features standard such as self bunding, full segregation for operations and maintenance, and DESN cubicle (with or without PCMS). Option for enhanced protection with K rated fluids and integrated with approved and preferred MV and LV switchgear solutions.
Protection and control customisation in accordance with MIEE, AS3000 and power system requirements.
Options for PCMS integration available that utilise preferred and leading components and apply local and proven know how.
Custom Substations

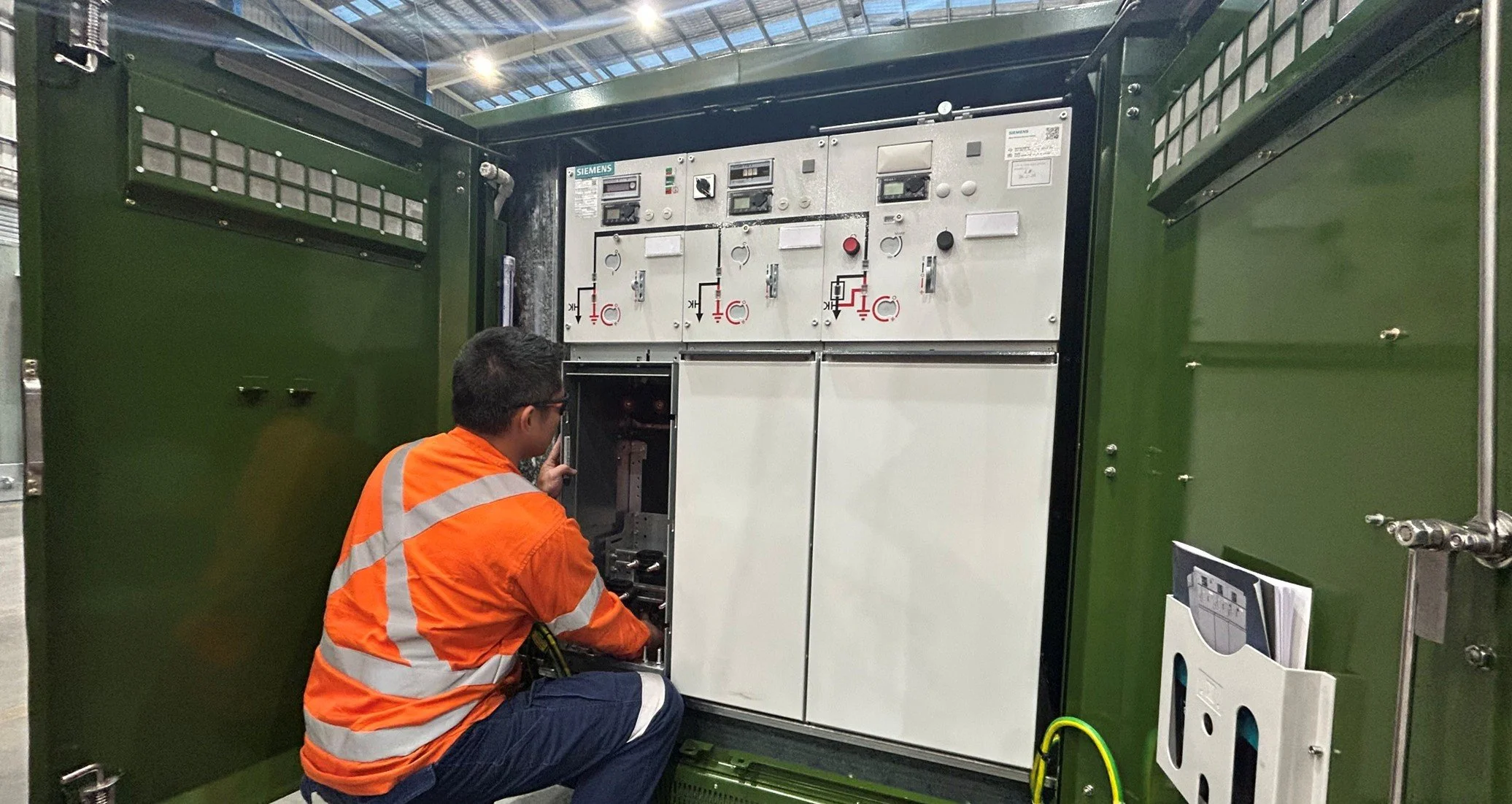

Tyree manufactures a comprehensive range of packaged outdoor substations at its dedicated substation factory, which has an annual production capacity exceeding 3,000 units.
The facility includes a purpose-built assembly hall designed specifically for the construction and testing of kiosk and padmount substations, serving both electrical utilities and industrial clients.
Our substation solutions cover ratings from 50kVA to 20MVA and all voltage classes up to 36kV.
-
Tyree works closely with you from the outset, taking the time to understand your specific technical requirements, site conditions and regulatory needs to shape the ideal solution.
Our experienced engineers and design team create a tailored solution taking into account performance, integration and maintainability.
-
Once the designs are approved, our Australian workshops turn the concepts into reality using high-quality materials, precision fabrication and extensive quality control.
Tyree’s skilled manufacturing team build to exact specifications ensuring every product meets relevant standards, delivering a reliable solution to support long-term performance and durability.
-
We support you through delivery and on-site integration, ensuring products are installed seamlessly within existing systems so it performs from day one.
Even after handover, we offer ongoing service, maintenance and technical support so you’re confident the system operates smoothly well into the future.
End-to-End Manufacturing from Design to Delivery
